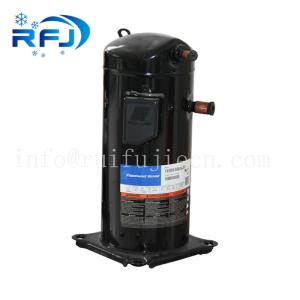

New Original EVI Copeland Low Temperature Compressor ZFI68KQE-TFD-564 15HP Horse Power

Name: New Original EVI Copeland Low Temperature Compressor ZFI68KQETFD564 15HP Horse Power
Brand: Copeland
Price: 1 USD

Wholesale New Original EVI Copeland Low Temperature Compressor ZFI68KQE-TFD-564 15HP Horse Power from china suppliers

Brand Name : Copeland

Model Number : ZFI68KQE-TFD-564

Certification : CE

Place of Origin : Belgium

MOQ : 1

Price : 1USD

Payment Terms : T/T

Supply Ability : 5,000pcs per month

Delivery Time : 1-7 working days after receiving payment

Packaging Details : 16PCS / Pallet

Applicable Industri : Hotels, Garment Shops, Building Material Shops, Machinery R

Type : Refrigeration Compressor, hermetic scroll compressor

Application : Refrigeration Parts

Horse Power : 15HP

Refrigerant : R404A/R507

Evaporating Tempe : Medium and Low

Displacement [m3/h : 2

Net weight [kg : 2

Power supply [V/~/ : 380-420V/3/50Hz

Contact Now

New original EVI Copeland Low Temperature Compressor ZFI68KQE-TFD-564

ZF Compressor Specifications:

Refrigerant: R404/R22 50Hz
Low Temperature
2-15HP
One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
High tolerance to liquid slugging thanks to its axial and radial scroll compliance
Large Operating envelope and low condensing capabilities down to 10° C
Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
Availability of Copeland Scroll Digital® Technology

Description

1. The most competitive price by agency directly

2. High-quality compressor by Emerson

3. High efficiency, low noise

4. used for cold room

New Original EVI Copeland Low Temperature Compressor ZFI68KQE-TFD-564 15HP Horse Power

Model	ZFI20KQE-TFD-551	ZFI26KQE-TFD-551	ZFI36KQE-TFD-551	ZFI50KQE-TFD-551
Diaplacement	9.0	13.7	16.0	25.0
(M3/one hour)	9.0	13.7	16.0	25.0
LRA(A)	40	46	64	74
RLA(A)	5	6.4	8.6	8.9
MCC(A)	7	9	12	12.5
Crank heater(W)	70W	70W	70W	70W
Discharge	1 1/4"	1 1/4"	1 1/4"	1 3/4"
Suction	1"	1"	1 1/4"	1 1/4"
Sizes(mm)
L	257	308	308	363
W	246	246	246	312
H	438	438	438	546
Oil fill(L)	1.89	1.89	1.89	3.37
Gross weight(kgs)	39	39	39	63

Model No.	Nom HP	Displ. cc/rev	evaporating temperature: °c
Model No.	Nom HP	Displ. cc/rev	-40	-35	-25	-15	-5	0
ZFI20KQE-TFD	4HP	11.7	3.46	4.31	6.33	8.93	12.20	14.05
ZFI26KQE-TFD	6HP	17.1	5.20	6.40	9.31	27.10	36.80	42.30
ZFI36KQE-TFD	7.5HP	21.4	6.52	8.06	11.85	16.35	22.20
ZFI50KQE-TFD	10HP	29.1	8.94	11.05	16.00	22.40	30.40
ZFI59KQE-TFD	13HP	35.3	11.05	13.65	19.80	27.10	36.80
ZFI68KQE-TFD	15HP	42.4	12.55	15.50	21.50

Vapor injection is a versatile method of improving system capacity and efficiency in many commercial refrigeration applications. Traditionally the only way to enjoy the added benefits of this type of mechanical subcooling was with a large screw compressor or two semi-hermetic reciprocating compressors. Now the Copeland Scroll® compressor enables significant performance gains with a single compressor. Injecting vapor in the middle of the compression process boosts capacities and efficiencies significantly. Scroll Compressors in Refrigeration Building on the success of scroll compressors in the refrigeration market world-wide, Emerson Climate Technologies, Inc. includes the ZF*KVE family of high efficiency refrigeration scrolls with vapor injection dedicated to low temperature applications. Vapor Injection Circuit for Low Temperature Applications The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.
